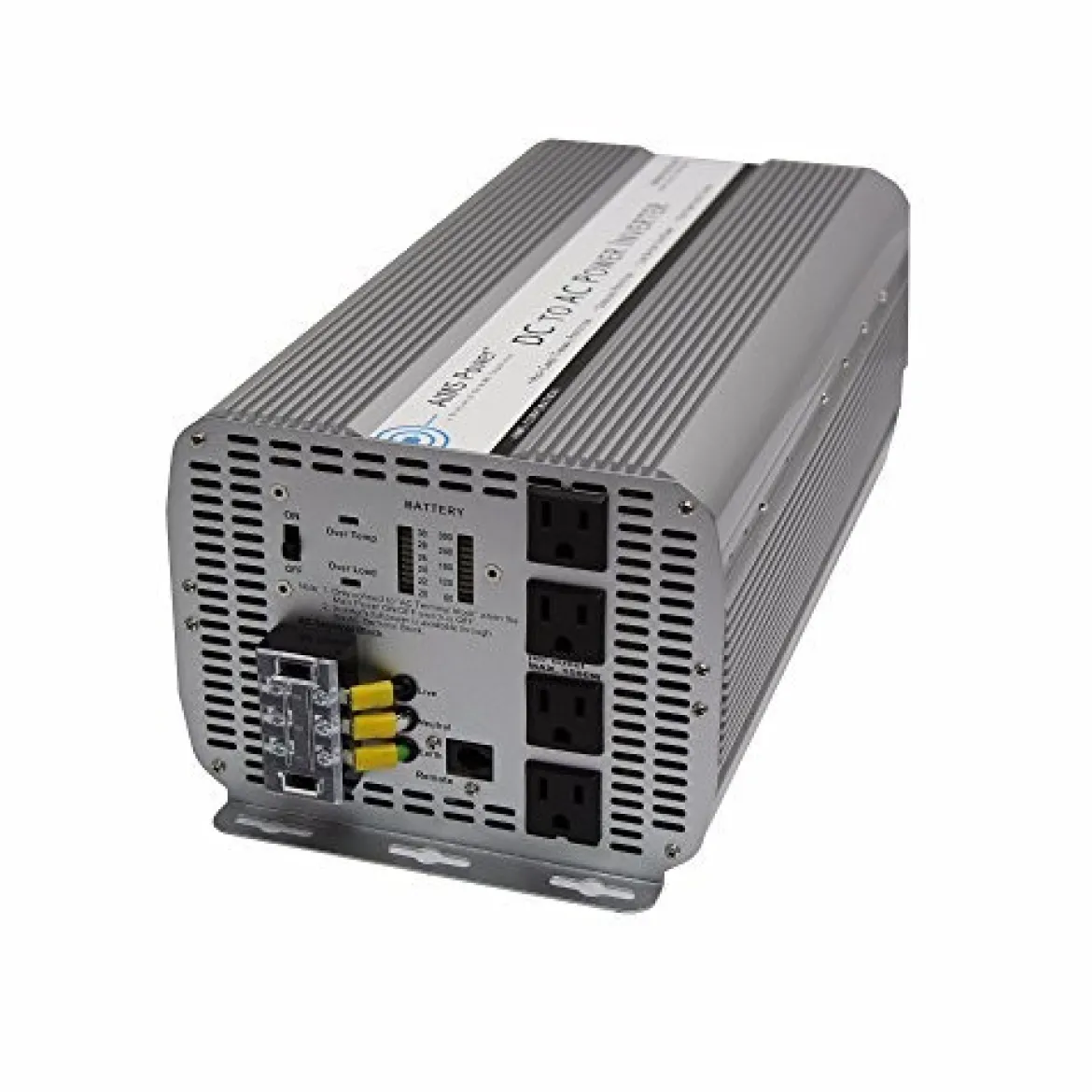

AIMS Power DC to AC Power Inverter 36V 5000W Max (PWRINV500036W)

AIMS Power PWRINV500036W 5000W 36V DC to AC Power Inverter is designed to provide reliable, efficient power for off-grid systems such as solar power setups, cabins, boats, and more. With a 5000W continuous output and surge capability of 10,000W, this inverter offers strong performance for high-load applications. It features a modified sine wave output, ensuring a stable power supply for various appliances. Equipped with four AC outlets, a volt meter, and an amp meter, it allows for easy monitoring of your system’s performance.

Features:

• 5000W continuous output power with a surge capability of 10,000W.
• Modified sine wave output for reliable power delivery.
• Four AC outlets for versatile power connections (max 1500W per outlet).
• Volt and amp meters for real-time monitoring of battery levels.
• Dual cooling fans for optimal thermal management.
• Pre-wired for remote on/off switch and mounting options.
• Overload and over-temperature protection for safety.
• Auto-reset feature for fault conditions.

Benefits:

• Ideal for off-grid power systems, solar power setups, cabins, and boats.
• Efficient performance with 90% efficiency at full load and 95% efficiency at 1/3 load.
• Convenient monitoring with real-time voltage and amperage display.
• Reliable power with surge capabilities for demanding appliances.

Technical Specifications:

• Model: PWRINV500036W
• Continuous Output Power: 5000W
• Surge Power Capability: 10,000W (peak)
• DC Input Operating Voltage: 30V to 48V
• AC Output Voltage: 120V AC ± 10%
• Output Waveform: Modified sine wave with phase correction
• Output Frequency: 60 Hz ± 1 Hz
• Battery Low Voltage Alarm: 31V ± 0.5V
• Battery Low Voltage Shutdown: 28V ± 0.5V
• Efficiency: 90% at full load, 95% at 1/3 load
• No Load Current: <0.9A
• Temperature Range: -15°C to 55°C
• AC Output Sockets: Quadruple Type 2 – 3 prong
• High Input Voltage Protection: 48V
• Low Input Voltage Shutdown: 28V
• Dimensions: 16.92” L x 7.95” W x 6.10” H
• Weight: 16.72 lbs (unit), 20 lbs (boxed)
• Warranty: 1-year parts and labor
• Certifications: UL, CE
