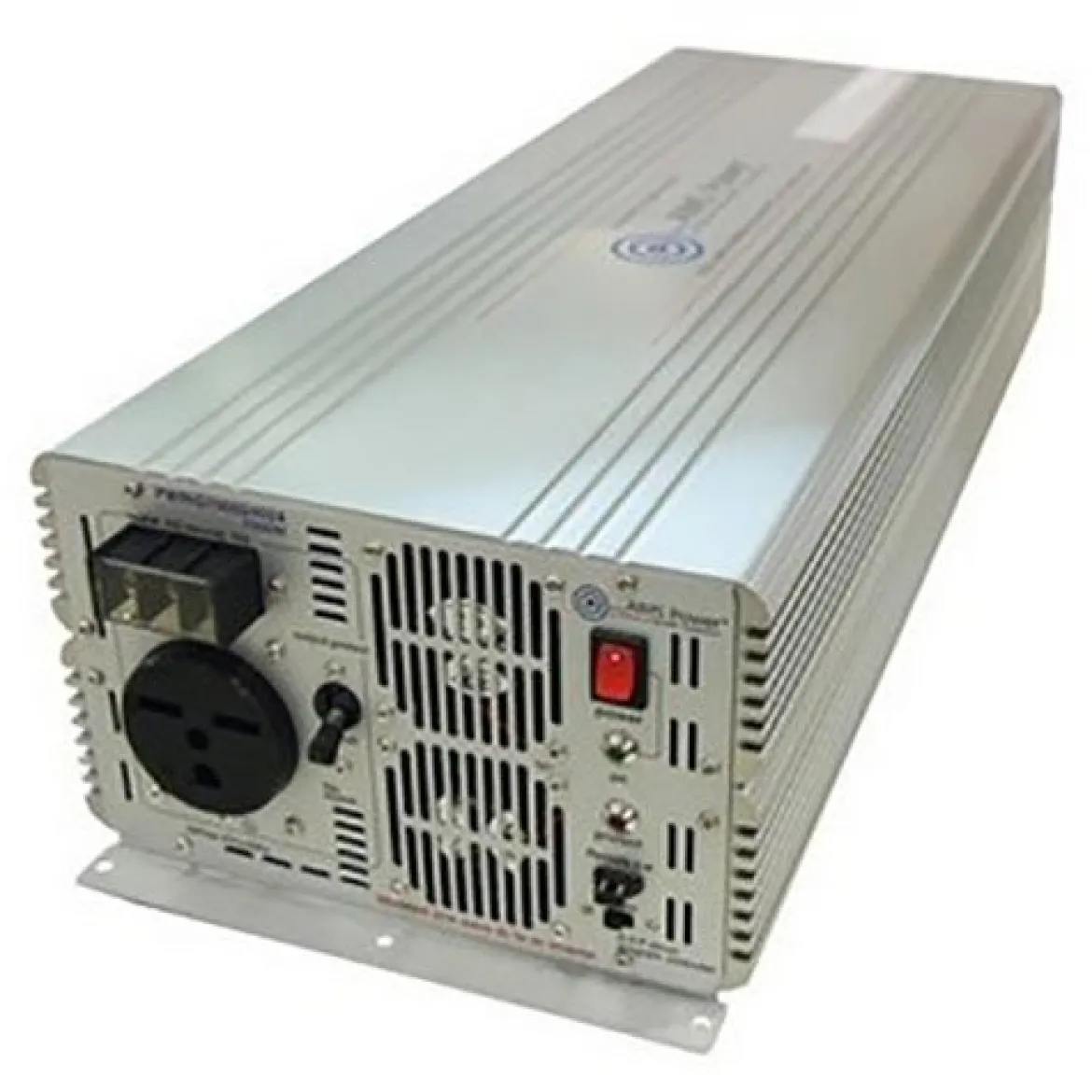

AIMS Power 7000W Inverter Industrial Grade 24V to 120V (PWRIG700024024)

AIMS Power 7000W Inverter is a high-performance, heavy-duty inverter designed to convert DC power to AC power efficiently. This modified sine wave inverter delivers a maximum continuous output, with a surge capability. Ideal for industrial applications or high-power systems, this inverter features a selectable frequency switch for 50Hz or 60Hz output and is equipped with safety indicators for overload, over-temperature, and short-circuit protection. The aluminum case ensures optimal cooling, while the thermally controlled fan adjusts to load conditions. This inverter also includes a resettable circuit breaker for added protection and a remote on/off switch for convenient operation.

Key Features & Specifications:

• Continuous Output Power: 7000W
• Surge Power Capability: 14000W (9-second surge duration)
• DC Input Voltage Range: 20-30 Volts
• Output Voltage: 247 Volts AC +/- 10%
• Output Waveform: Modified sine wave with phase correction
• Battery Low Voltage Alarm: 20 +/- 0.5 Volts
• Battery Low Voltage Shutdown: 19.5 +/- 0.5 Volts
• High Input Voltage Protection: 34 +/- 0.5 Volts
• Efficiency: 90% (Full load)
• Cooling: Thermally controlled fan with auto start at 107°F
• AC Output Socket Type: Single 240V plug
• Start-up AC Amps: 58 Amps
• Continuous AC Amps: 29 Amps
• Internal Fuse Protection: Yes
• Product Size: 22.5” x 10” x 6.5”
• Weight: 27 lbs (Box), 20 lbs (Unit)
• 1-Year Warranty (Parts and Labor)
• Free Tech Support: 1 Year
• Protection Features: Overload, Over Temperature, Short Circuit, Resettable Circuit Breakers
