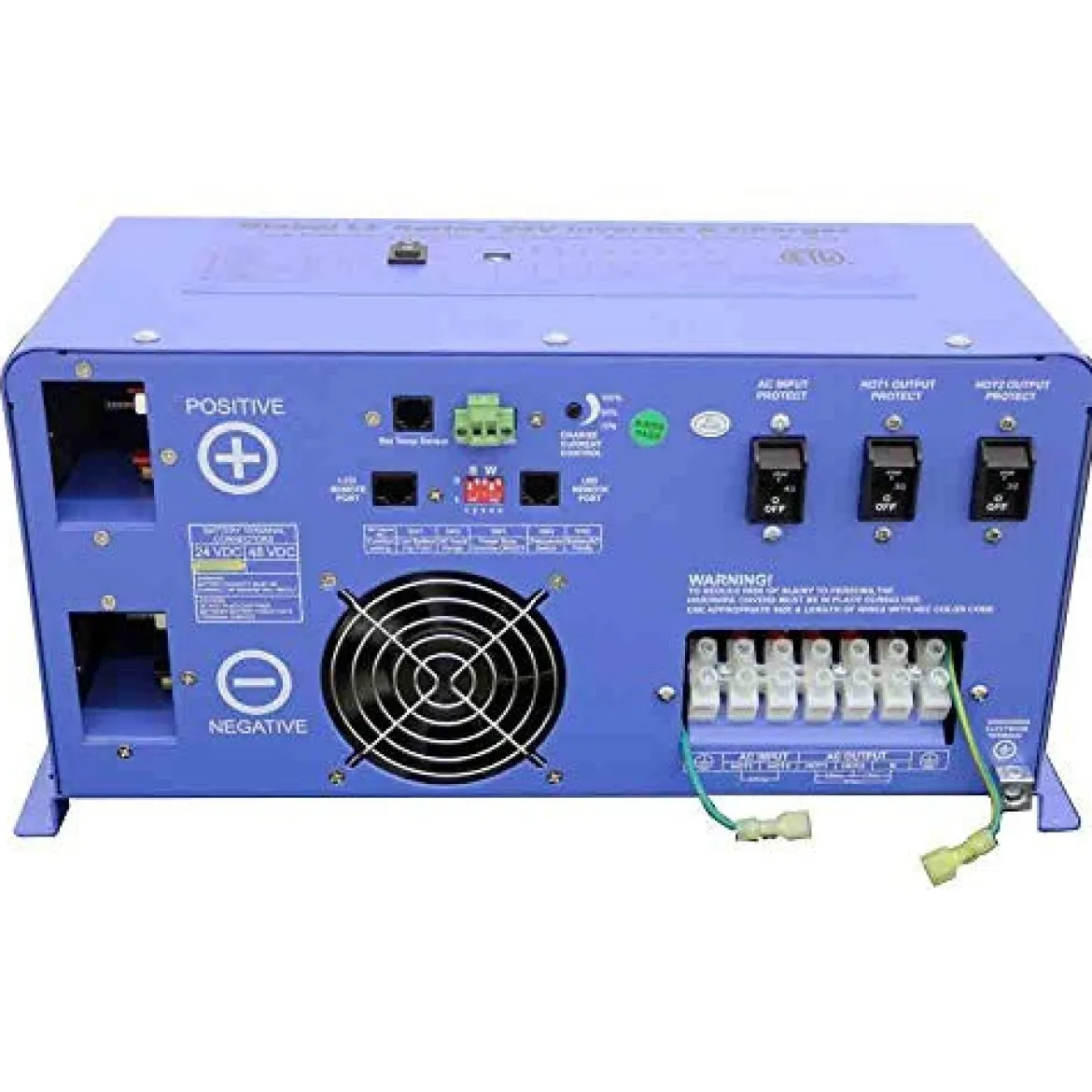

AIMS Power 6000W 18000W Peak Pure Sine Inverter Charger (PICOGLF6024240SUL)

AIMS Power 6000W 18000W Peak Pure Sine Inverter Charger is a reliable and efficient power solution for off-grid systems, RVs, homes, and commercial applications. With features like a multi-stage 80A smart charger and a battery priority selector, this inverter ensures optimal battery performance and energy efficiency. It’s also compatible with GEL, Lead, AGM, and Lithium batteries, making it a versatile option for various setups. The remote panel, auto frequency adjustment, and power-saving mode enhance convenience and energy savings. The inverter is UL and CSA listed for safety and reliability, making it a great choice for those needing consistent, high-quality power.

Key Features & Specifications:

• Continuous Output Power: 6000 Watts
• Surge Rating: 18000 Watts (20 Seconds)
• Output Voltage: 100-110-120-220-230-240V AC (Split Phase)
• Output Waveform: Pure Sine / Same as Input (Bypass Mode)
• Output Breaker: 40 Amps
• Nominal Efficiency: >88% (Peak)
• Line Mode Efficiency: >95%
• Output Frequency: 50Hz ± 0.3Hz / 60Hz ± 0.3Hz
• Typical Transfer Time: 10ms (Max)
• THD (Total Harmonic Distortion): <10% DC
• Operating Temperature: 14°F to 122°F (-10°C to 50°C)
• Warranty: 2 years

Input Specifications:

• Nominal Input Voltage: 24.0V DC
• Minimum Start Voltage: 20.0V DC
• Low Battery Alarm: 21.0V – 22.0V DC
• Low Battery Trip: 20.0V – 21.0V DC
• High Voltage Alarm: 32.0V DC
• Low Battery Voltage Restart: 26.6V DC
• Idle Consumption: 52.5W
• Idle Consumption with Power Saver Mode ON: <25W

Charger Specifications:

• Charger Rate: 80A
• Overcharge Protection: Shutdown at 31.4V
• Selectable Charge Setting: Based on battery type
• Adjustable Charge Current: Off, 15%, 100%
• Four-Stage Smart Charger

Transfer Switch Specifications:

• Automatic Transfer Switch: 80A
• Transfer Time: 10ms (Max)
• Certifications: UL 458, 1741, 1012, CSA 22.2 No. 107.1 & 107.2

Dimensions:

• Unit Weight: 108 lbs
• Unit Size (L x W x H): 19″ x 16.5″ x 8″
• Shipping Weight: 113 lbs
• Shipping Dimensions (L x W x H): 30.5″ x 14.25″ x 13.75″
