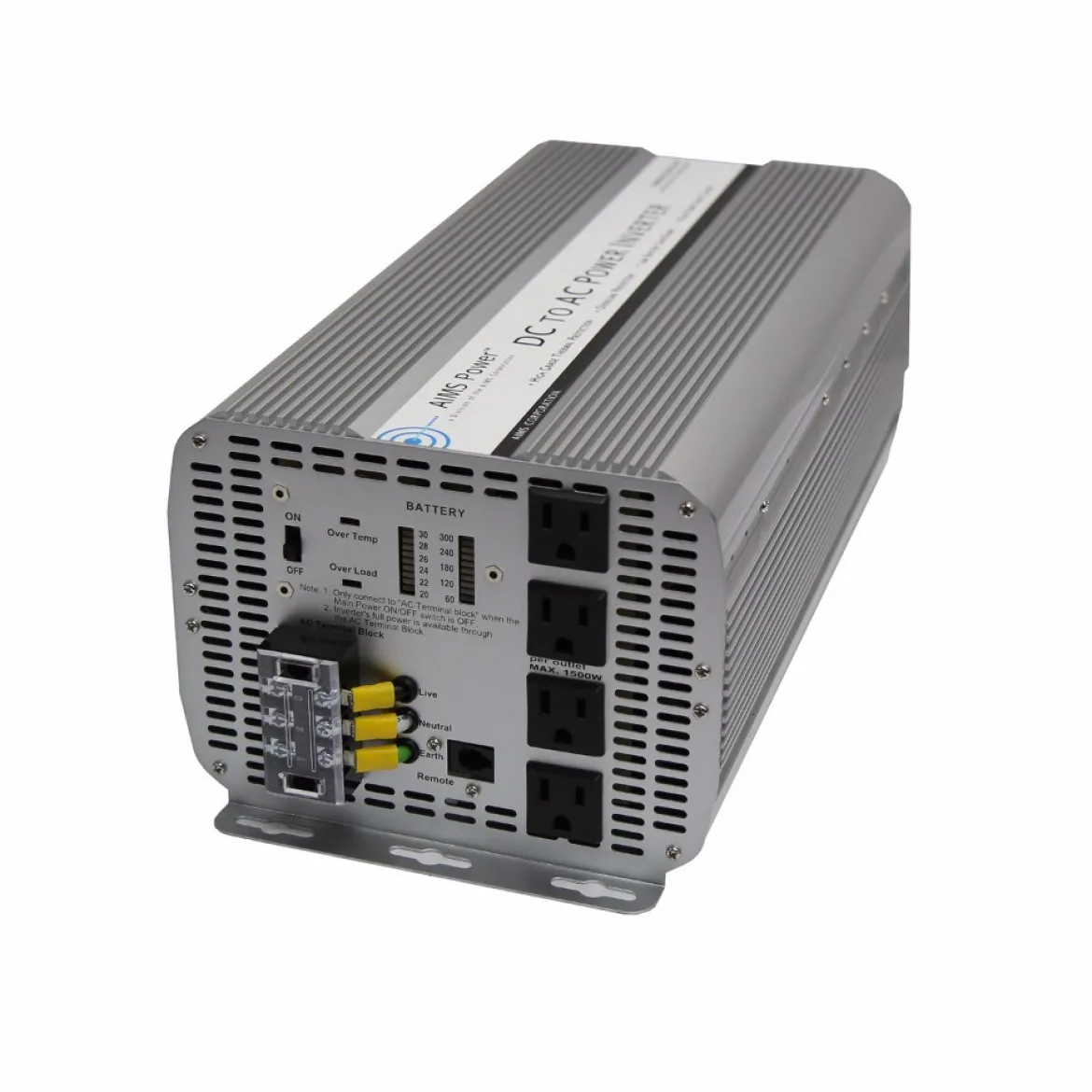

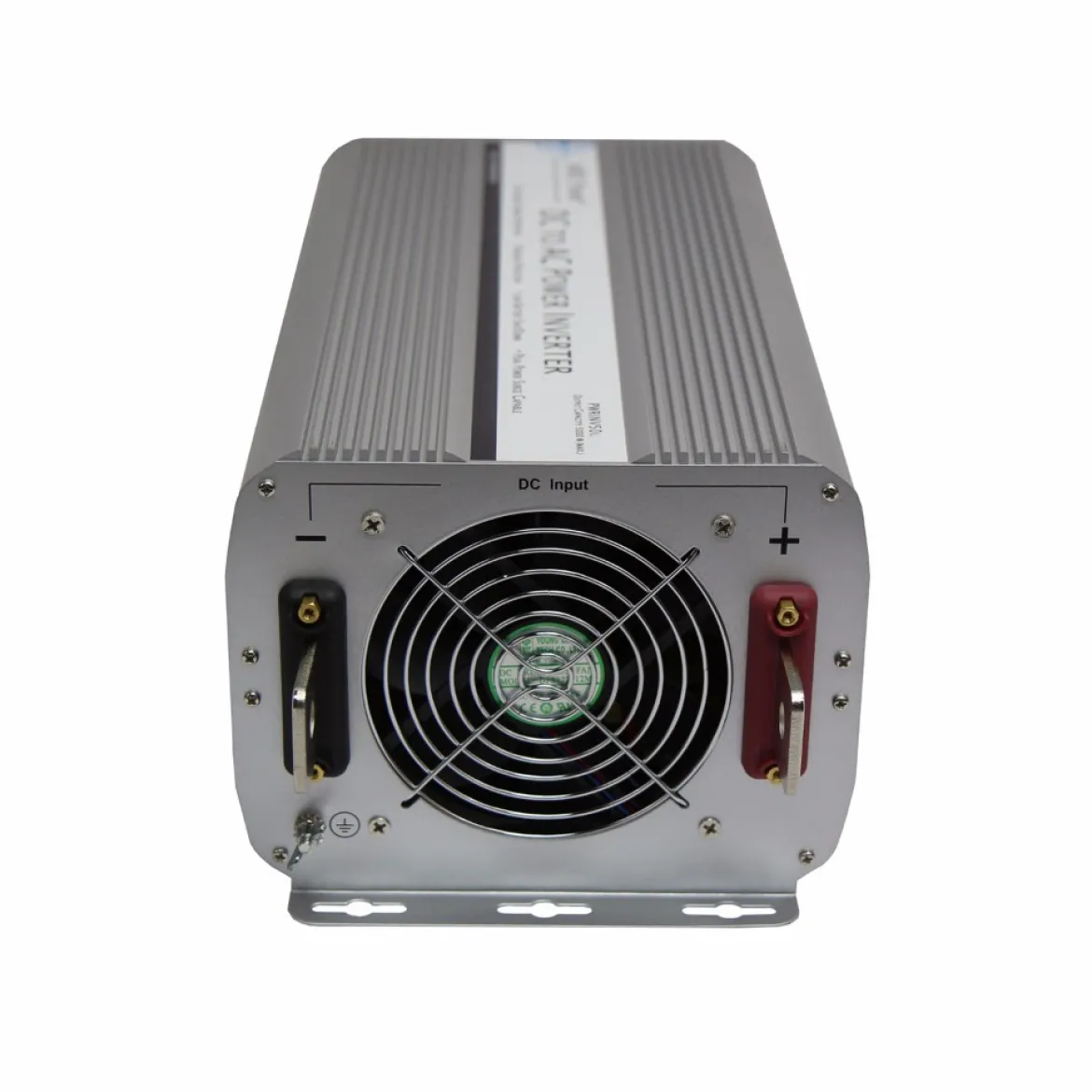

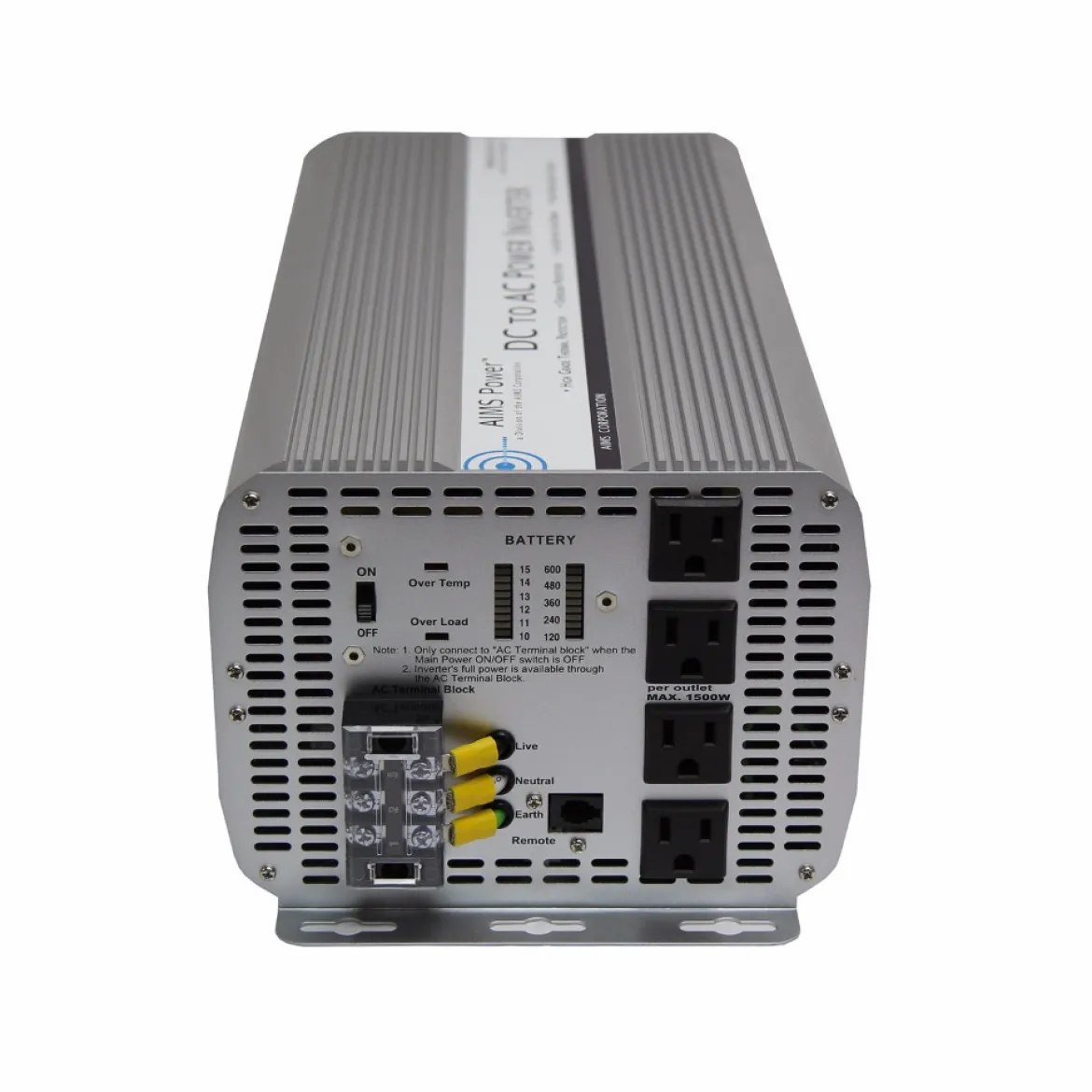

AIMS Power 5000 Watt Power Inverter 12 Volt (PWRINV500012W)

AIMS Power PWRINV500012W 5000 Watt Power Inverter is a reliable and cost-effective solution for converting 12V DC power into 120V AC power. Ideal for various applications, this modified sine wave inverter can power appliances such as heaters, air conditioners, and kitchen devices. While its waveform isn’t as smooth as a pure sine wave inverter, it delivers sufficient power for most essential devices. Designed to keep equipment running during power outages, it features high surge capacity, internal protection mechanisms, and multiple AC outlets, making it an excellent choice for both home and worksite use.

Features:

• 5000W continuous power with 10,000W surge capacity
• Modified sine wave output with phase correction for stable performance
• Quadruple AC outlets (Type 2 – 3 prong) for multiple connections
• Battery low voltage alarm and shutdown for battery protection
• High input voltage protection to prevent damage
• Automatic shutdown at extreme temperatures for safety
• Internally fuse-protected system for enhanced reliability
• Pre-wired for a remote on/off switch
• Pre-slotted mounting plate for easy installation

Benefits:

• Reliable power source for home, RV, and off-grid applications
• Can handle high-powered appliances and essential tools
• Cost-effective alternative to pure sine wave inverters
• Built-in safety features protect connected devices and batteries
• Lightweight and easy to install with pre-mounting slots
• Ideal backup power solution for emergencies and outages
• Includes a 1-year warranty and free tech support

Technical Specifications:

• Model Number: PWRINV500012W
• Continuous output power: 5000 Watts
• Surge power capability: 10,000 Watts
• DC input operating voltage: 10 to 15 Volts
• Output voltage: 120 Volts AC ± 10%
• Output waveform: Modified sine wave with phase correction
• Output frequency: 60 Hz ± 1 Hz
• Battery low voltage alarm: 10.5 ± 0.5 Volts
• Battery low voltage shutdown: 10.0 ± 0.5 Volts
• No load current: < 0.6 Amps
• Full load efficiency: 90%
• 1/3 load efficiency: 95%
• Minimum operating temperature: -15°C
• Maximum operating temperature: 55 ± 5°C (automatic shutdown)
• AC output socket type: Quadruple Type 2 – 3 prong
• High input voltage protection: 15V-17V
• Low input voltage shutdown: 10V
• Internal fuse protection
• Dimensions (L x W x H): 17″ x 7.75″ x 6″
• Weight: 18 lbs (unit), 20 lbs (boxed)
• UL maximum recommended per outlet: 1500W
• Free 1-year tech support
• 1-year warranty on parts and labor
• Instruction manual included
• Pre-wired for remote on/off switch and pre-slotted mounting plate
