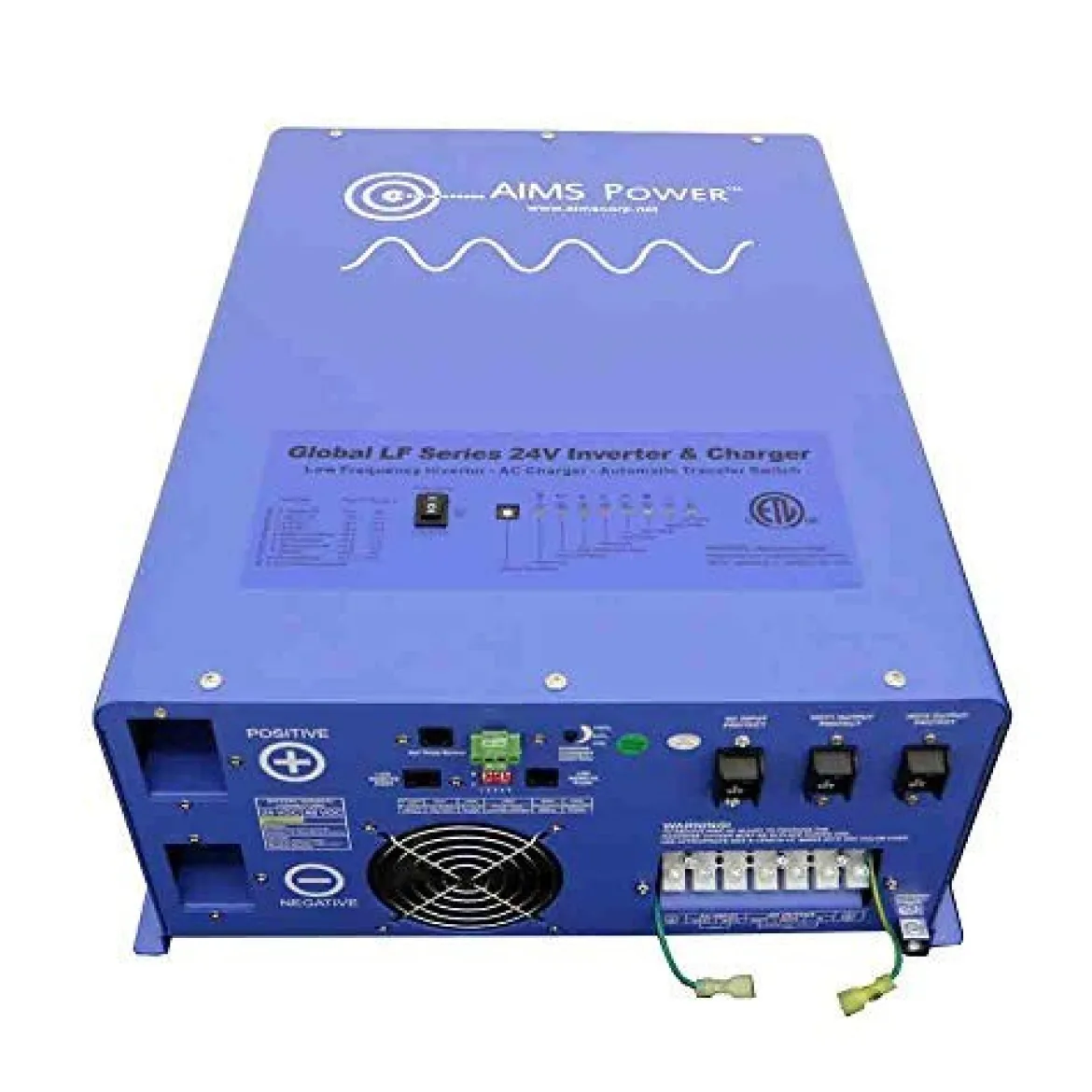

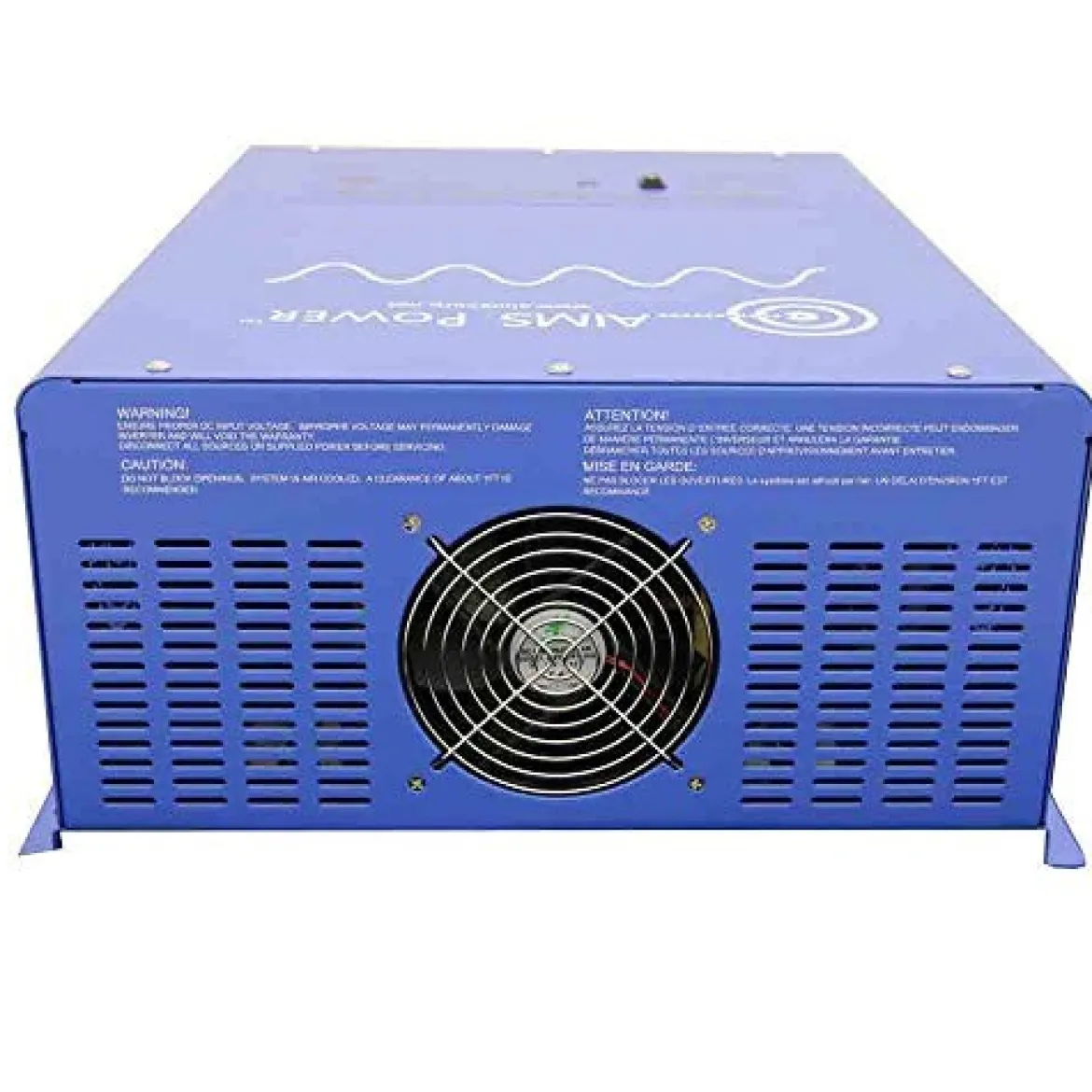

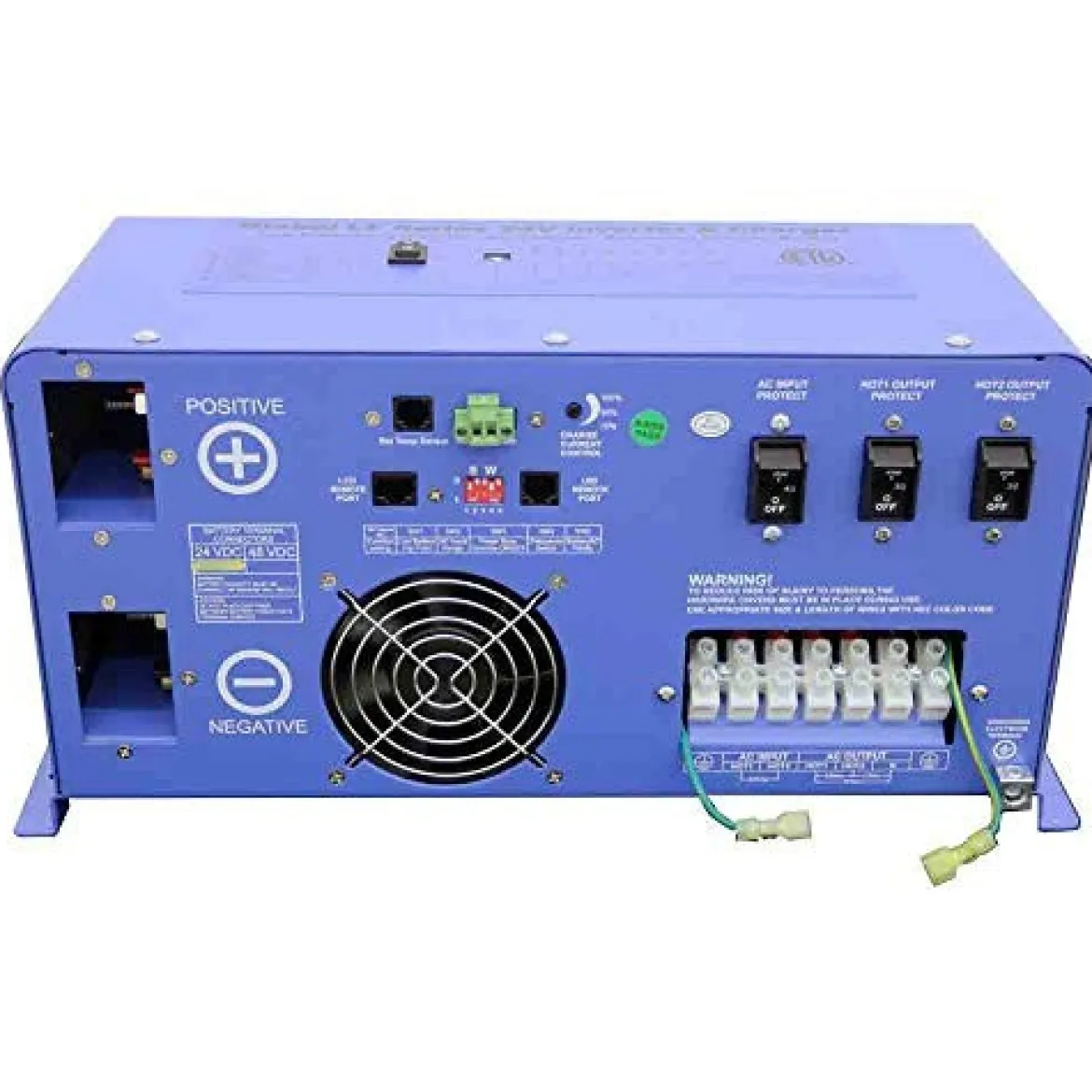

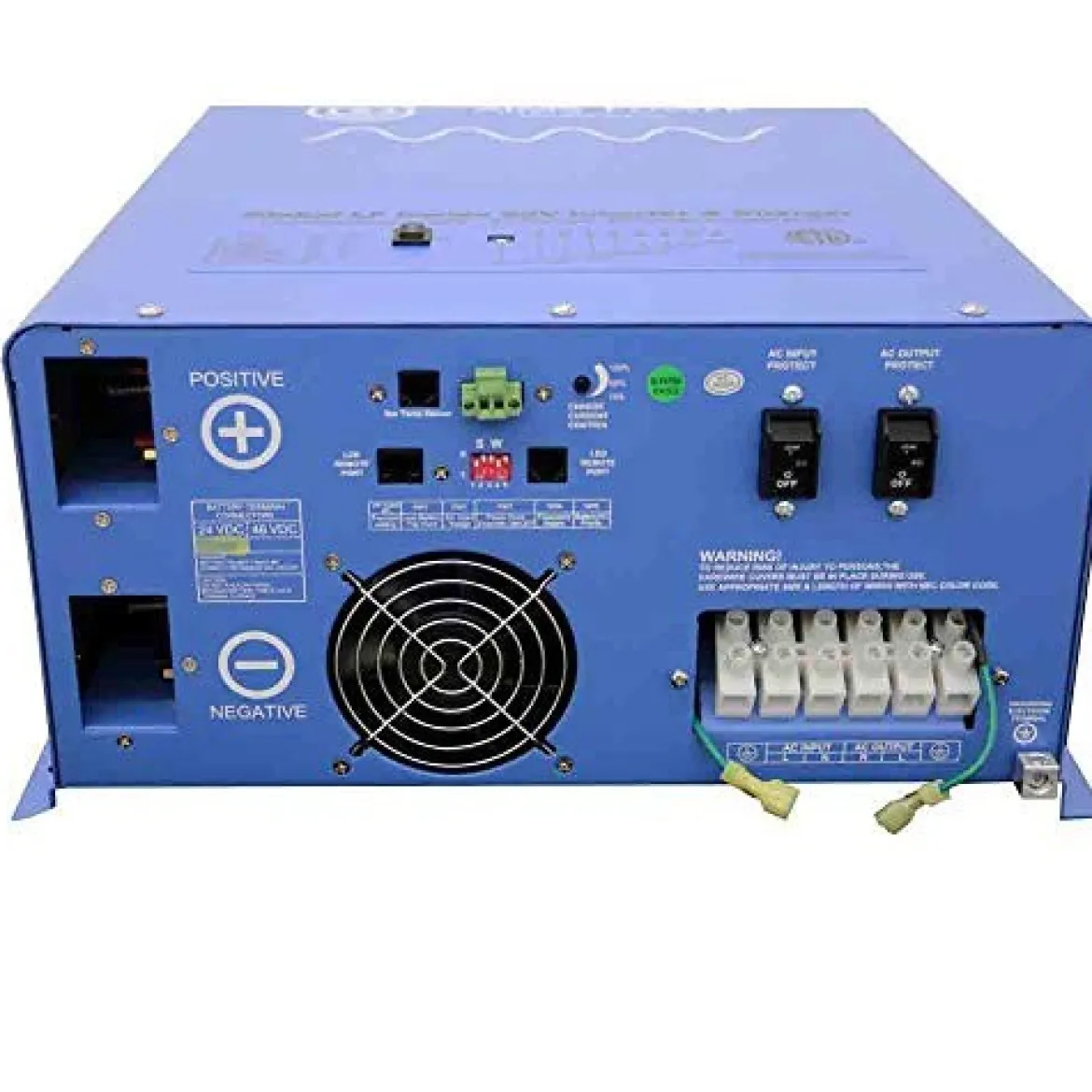

AIMS Power 4000W 12000W Peak Pure Sine Inverter Charger (PICOGLF4024240SUL)

AIMS Power 4000W Pure Sine Inverter Charger is a reliable and high-performance inverter designed for demanding applications. Built to UL and CSA safety standards, it ensures quality and reliability. It features a multi-stage 55A smart charger capable of charging various battery types, including lithium LiFePO4, AGM, GEL, and lead batteries. Its marine-coated protection ensures durability in tough environments. Additionally, the unit includes an automatic transfer switch, a low battery alarm, and a selectable 25W power save mode, making it energy-efficient. The inverter also supports a remote panel, and its auto-frequency feature ensures smooth performance. With easy installation options like a terminal block and battery priority selector, it’s a perfect choice for power needs.

Key Features & Specifications:

• Continuous Output Power: 4000 Watts
• Surge Rating: 12000 Watts (for 20 seconds)
• Input Voltage: 24.0V DC
• Output Waveform: Pure Sine Wave / Same as Input (Bypass Mode)
• Output Voltage: 100-110-120-220-230-240V AC (Split Phase)
• Output Breaker: 50 Amps
• Nominal Efficiency: >88% (Peak)
• Line Mode Efficiency: >95%
• Output Frequency: 50Hz ± 0.3Hz / 60Hz ± 0.3Hz
• Typical Transfer Time: 10ms (Max)
• Total Harmonic Distortion (THD): < 10% DC
• Operating Temperature Range: 14°F to 122°F (-10°C to 50°C)
• Battery Charger Rate: 55A (supports Lithium LiFePO4, AGM, GEL, Lead Acid)
• Four-Stage Smart Charger: Yes
• Selectable Battery Settings: 7 types, including lithium
• Low Battery Alarm: 21.0V – 22.0V
• Low Battery Trip: 20.0V – 21.0V
• High Voltage Alarm: 32.0V DC
• Overcharge Protection: Shutdown at 31.4V
• Automatic Transfer Switch: 50A, 10ms (Max)
• Certifications: UL 458, 1741, 1012, and CSA 22.2 No. 107.1 & 107.2
• Warranty: 2 Years (Parts & Labor)
• Dimensions: 19″ L x 16.5″ W x 8″ H
• Weight: 84 lbs
• Shipping Weight: 88 lbs
• Shipping Dimensions: 30.5″ L x 14.25″ W x 13.75″ H
