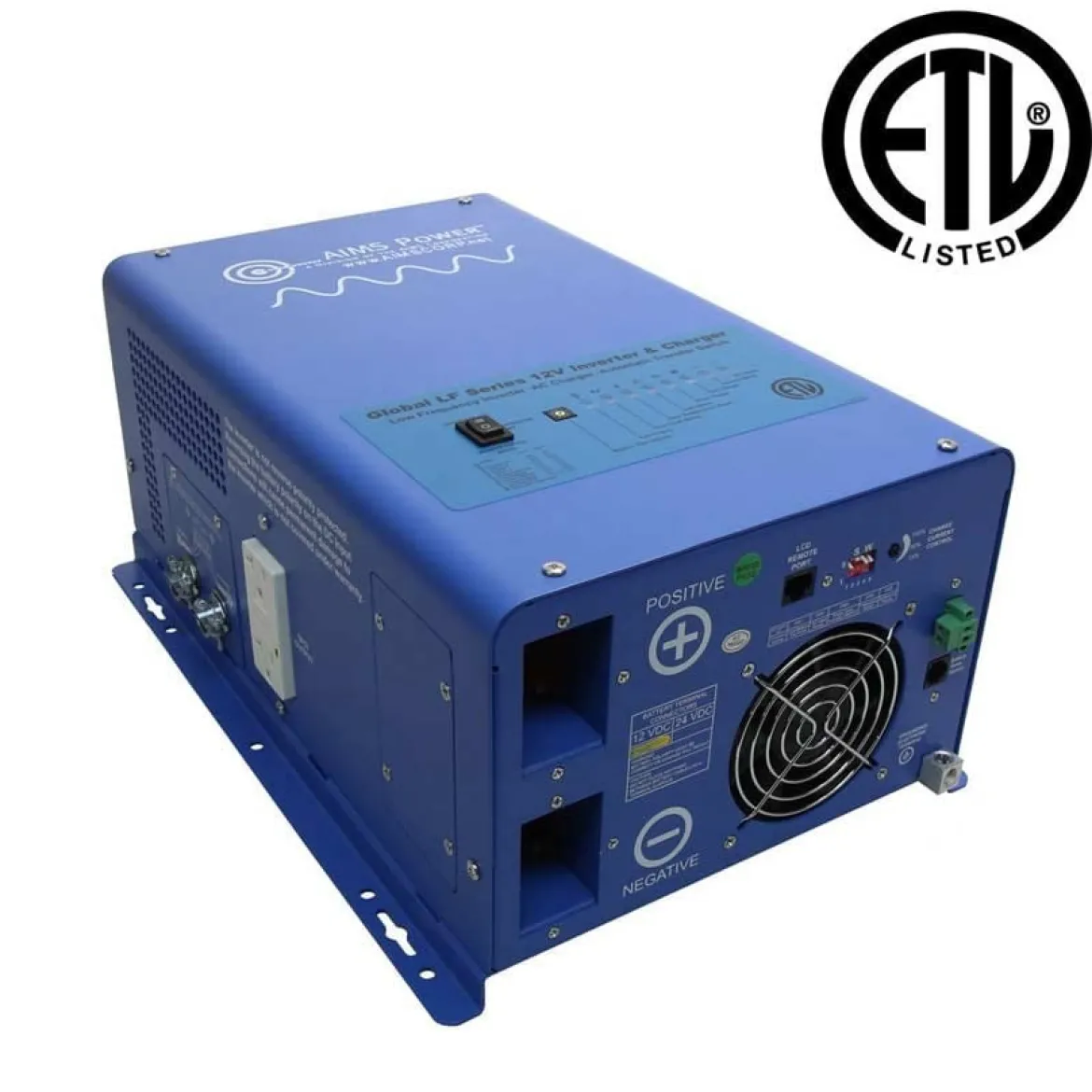

AIMS Power 3000W 120V Pure Sine Inverter Charger (PICOGLF3K12050BY)

AIMS Power 3000W 120V Pure Sine Inverter Charger is a reliable, high-performance power solution designed to efficiently convert DC to AC power. The inverter features a multi-stage smart charger with a 100A charge rate, and it’s ideal for use with various battery types, including lithium. Equipped with a battery priority selector, GFCI protection, and a marine-coated enclosure, it ensures safety and durability. The inverter also includes automatic transfer switch functionality, selectable power save mode, and a fast recovery system to protect against low or high voltage, overloads, and short circuits. Whether for off-grid systems, RVs, or emergency backup, this inverter charger an efficient, dependable choice for power conversion.

Key Features & Specifications:

• Continuous Output Power: 3000 Watts / 3KW
• Surge Power: 9000 Watts / 9KW (for 20 seconds)
• Starting Electric Motor: 3 HP
• Output Waveform: Pure Sine Wave
• Nominal Efficiency: >92% (Peak)
• Line Mode Efficiency: >95%
• Power Factor: 0.9 – 1
• Nominal Output Voltage: 120V AC
• Output Voltage Regulation: ± 10% RMS
• Output Frequency: 50/60 Hz ± 0.3Hz
• Short Circuit Protection: Yes, Current Limit Function
• Typical Transfer Time: 10ms (Max)
• Max THD at Full Load: < 20%
• DC Input Voltage: Nominal 12 Vdc
• Low Battery Alarm: 10.5V-11.0V DC
• Low Battery Trip: 10.0V-10.5V DC
• High Voltage Alarm & Fault: 16Vdc
• Sleep Mode Threshold: >50 Watts (Power Saver On)
• Charger Max Charge Rate: 100A
• Charger Breaker Rating (120V): 30A
• Battery Type Settings: 7 settings including Lithium
• Bypass & Protection: 50A Breaker (120V & 240V)
• GFCI Rating: 20A
• Nominal Input Frequency: 50Hz or 60Hz (auto detect)
• Mechanical Mounting: Pre-drilled holes for wall/ground
• Dimensions: 16.25″ L x 11″ W x 7″ H
• Weight: 59 lbs
• Shipping Dimensions: 21″ H x 14″ W x 12″ H
• Shipping Weight: 64 lbs
• Warranty: 2 Years
