AIMS Power 24V Lithium Battery with Short Circuit Protection (LFP24V400A)

AIMS Power 24V Lithium Battery with Short Circuit Protection (LFP24V400A) offers high-performance and long-lasting energy storage for off-grid systems, solar power setups, and more. Built-in safety features like short circuit protection, low voltage shutdown, overcharge, and over-discharge protection ensure the battery operates reliably and safely. This lithium battery can be mounted in any orientation and supports up to 10 batteries in parallel for expanded capacity. The Battery Management System (BMS) ensures efficient charging and discharging, while the RS485 and CAN ports allow for real-time monitoring. This is a perfect choice for residential, commercial, and off-grid applications where high power output and efficiency are required.

Key Features & Specifications:

• Battery Type: 24V Lithium Iron Phosphate (LiFePO4)
• Capacity: 400 Amps
• Cycle Life: 3,500 cycles at 80% DoD, 6,000 cycles at 60% DoD
• Short Circuit Protection: Yes
• Automatic Low Voltage Shutdown: Yes
• Over Charge Protection: Yes
• Over-Discharge Protection: Yes
• Mounting Orientation: Can be mounted in any orientation
• Automatic Cell Balancing: Yes
• High Output Current: Ideal for inverters

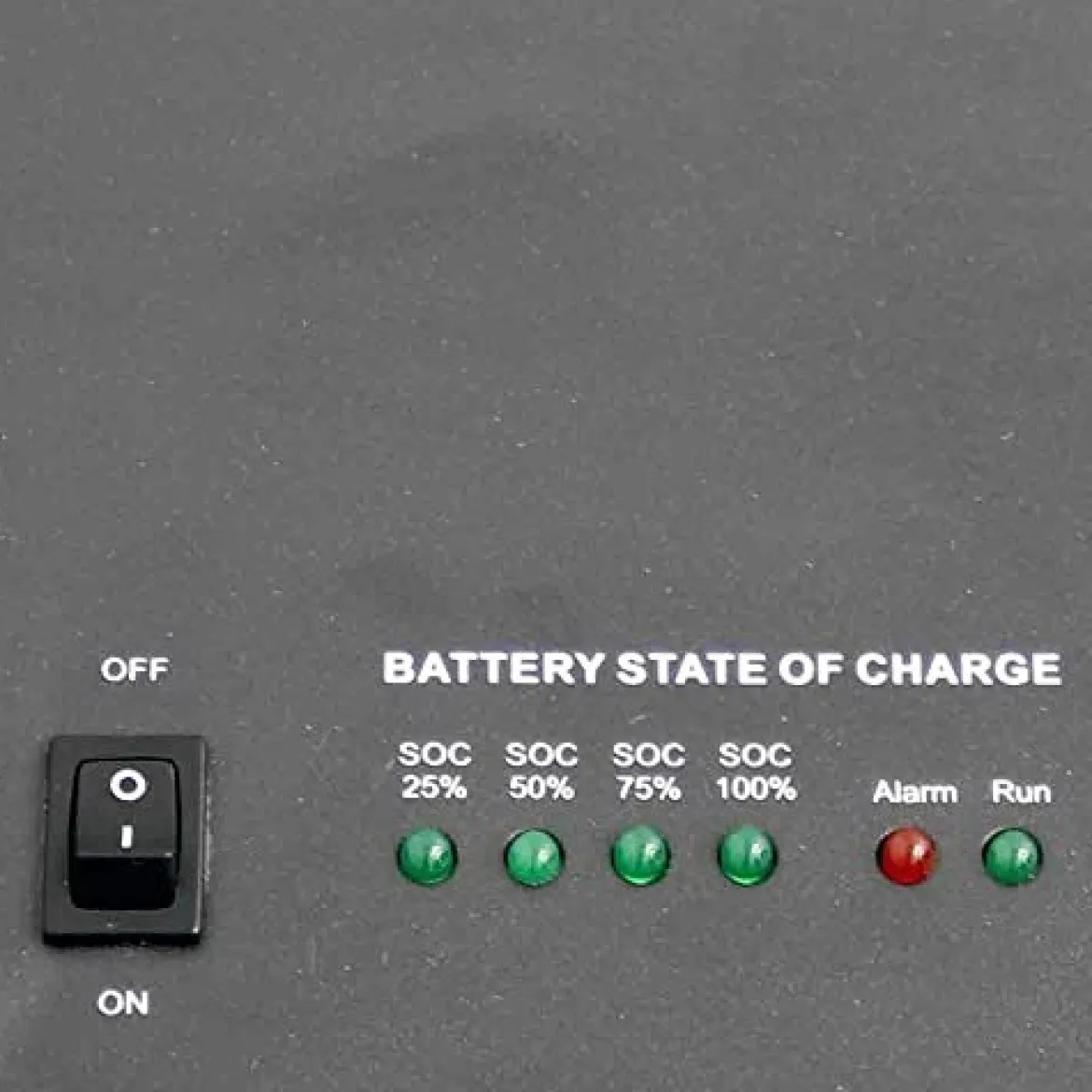

• Battery Status LED: State of Charge (SOC) display

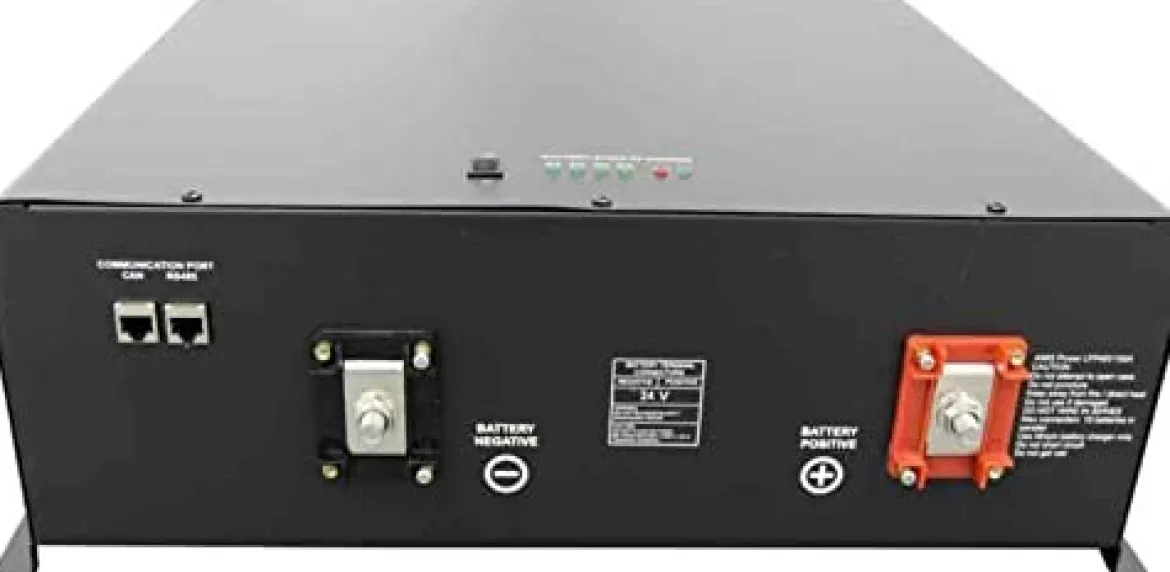

• Ports: RS485 & CAN ports for monitoring
• Power Switch: Built-in on/off switch
• Reverse Polarity Protection: Yes (Caution advised)
• Venting/Gassing: No venting or gassing required
• Temperature Protection: Built-in BMS temperature protection
• Warranty: 10-year manufacturer defect warranty (prorated)

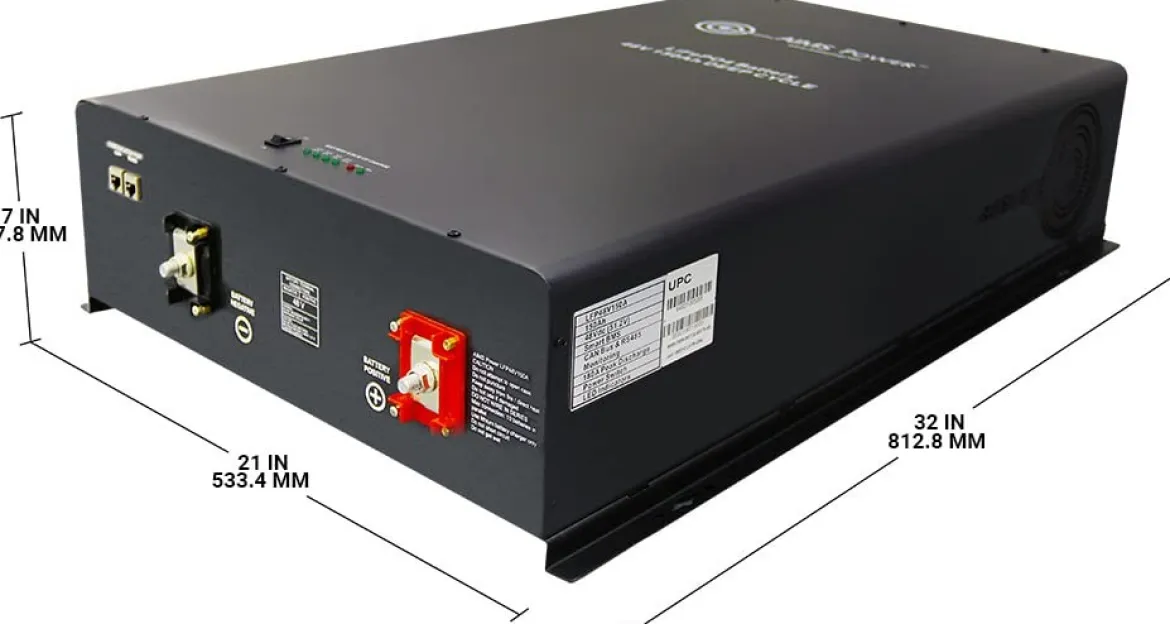

Dimensions:

• Unit Dimensions: 32″L x 21″W x 7″H
• Shipping Dimensions: 38″L x 29″W x 21 1/2″H
• Unit Weight: 214 lbs
• Shipped Weight: 242 lbs
